Weight:

750g (including battery)

Dimension:

255mmx146mmx21mm

 System Parameter

CPU:

MTK6765V Octa-core 2.3GHz

OS:

Android12.0

Memory:

4GB+64GB,6GB+128GB(Optional)

Max expansion: 128G

Display:

8inch,IPS screen:1280*800

Keys:

Power key, volume key, scan key,    two custom keys

Battery:

3.85V 8000mAh Li-Ion

 Function Configuration

Barcode Scanner:

Zebra SE4710 (Optional)

Honeywell 5703 (Optional)

NFC:

NXP Chip

support ISO/IEC 14443 A, ISO/IEC 14443 B, MiFare S50,S70

Bluetooth:

BT5.0

Camera:

Front 5MP, Rear 13MP Camera

GPS:

GPS/Beidou/GLONASS

External Interface

USB:

TYPE-C

Charging:

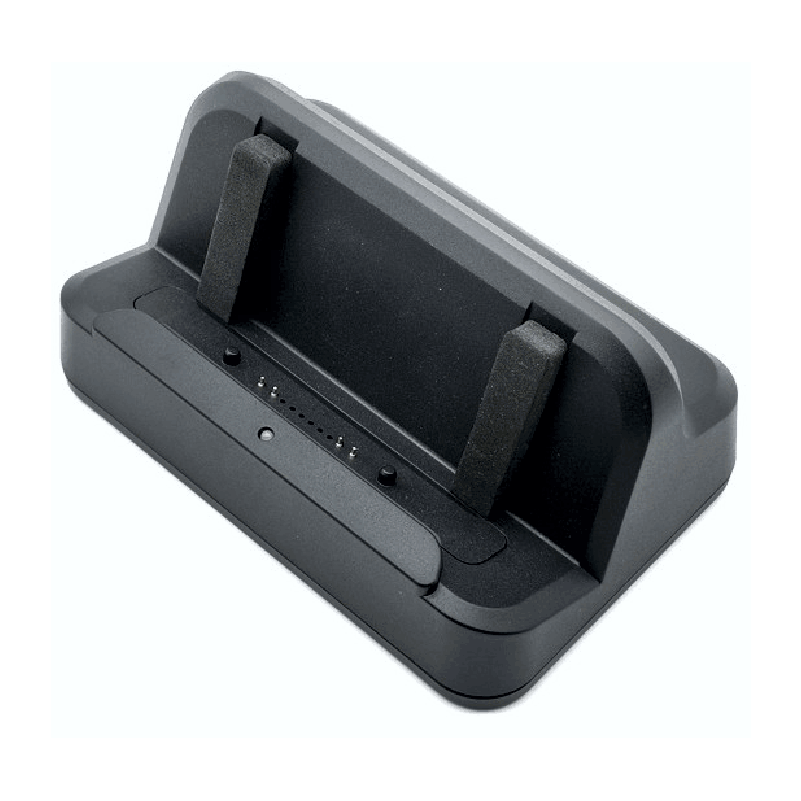

5V-DC, charging cradle optional

 Communication

Wireless Communication:

GMS: 850/900/1800/1900

WCDMA:B1/B2/B5/B8

LTE-TDD:B34/B38/B39/B40/B41

LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B12/

B13/B17/B18/B19/B20/B25/B26/B28

WLAN:

2.4G/5G Dual-band, 802.11 a/b/g/n

 Reliability

Protection Rate:

IP67

ESD:

±6KVdischarge, ±12KV air discharge

 Environmental

Operation Temperature:

-10°C to 50°C

Storage Temperature:

-40°C to 70°C

Humidity:

10% to 95% (Non-Condensing)

 Secondary Development

SDK:

SDK available
