Processor

Octa-core 2.0GHz high-performance processor

Operating   System

Android   14.0 (GMS)

Memory (ROM+RAM)

64GB + 6GB (standard)

SIM

Select   two out of three available SIM card slots, support dual SIM and dual standby

* two   cards can be inserted at the same time, Nano SIM card + Nano SIM card /Nano   SIM card +TF card

Expansion Slot

Micro SD card (up to 512GB)

Display   Screen

5.5-inch,   resolution: 1440*720 pixels, IPS

Touch Screen

Industrial capacitive screen, support wet-hand   operation/glove mode/multi-touch/gesture operation

Camera

13MP rear   camera, support auto-focus/PDAF, 5MP front camera

Flashlight

1A flashlight

Keypad

6 keys in   total: side scan key *2, side power key *1, volume key*2, custom key*1

Battery

3.85V lithium battery, with 5000mAh, detachable,   support backup battery

Audio

Built-in   dual microphone (noise-canceling microphone)

Charging Method

Type-C charging and pin port charging, support 18W   fast charging

Reminder

Vibration   reminder/LED reminder/Audio reminder

Vibrating Motor

Built-in vibrating motor

Sensors

G-sensor/   Proximity sensor/Light sensor, Optional: Gyroscope/geomagnetic sensor/high-   precision barometer

Intercom Function (Optional)

Support one-button PTT calls

Structure Parameter

Dimension (L*W*D)

160.7mm*74.9mm*15.4mm

Weight

278g   (including the battery)

Communication   Transmission

WWAN (Network Frequency)

China & Eurasian version

2G:B2/B3/B5/B8

3G:WCDMA:B1/B2/B5/B8 TD-SCDMA:B34/B39

4G:FDD-LTE:B1/B3/B5/B7/B8/B20 TDD-LTE:B34/B38/B39/B40/B41

Global version

2G:B2/B3/B5/B8

3G:WCDMA:B1/B2/B4/B5/B8 TD-SCDMA:B34/B39

4G:FDD-LTE:   B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A/B28B TDD-LTE:B34/B38/B39/B40/B41

WWAN   (Data Service)

GSM/GPRS/EDGE/UMTS/HSPA/HSPA+/WCDMA/TD-   SCDMA/TDD-LTE/FDD-LTE

WLAN Function

Wi-Fi 802.11a/b/g/n/r/ac (2.4G + 5G dual-band Wi-Fi),   support fast roaming

Bluetooth

Bluetooth   5.0, support BLE

GPS

GPS/AGPS/BDS/Galileo/GLONASS/QZSS

Environmental   Parameter

Working Temperature

-20°C - 60°C

Storage   Temperature

-40°C - 60°C (without the battery)

Humidity

0 - 95% (no moisture condensation)

Drop   Specification

Multiple   drops to concrete floor from the height of 1.5m

Roller Drop Specification

1000 times of roller drops from a height of 0.5 meter

Ingress   Protection

IP67/IP65

ESD Protection

±15KV (air discharge), ±8KV (contact discharge)

Scanning Engine

Barcode Type

It can scan one-dimensional / two-dimensional   barcodes

Scanning   Accuracy

≧3.33mil

Scanning Angle

Pitch: ±60°; Skew:±45°;   Tilt:360°

View   Angle

Horizontal:44.3°，Vertical:28.4°，Diagonal:51°

Motion Error Tolerance

8m/s

NFC   (standard)

Working Frequency

13.56 MHz

Reading   Distance

Within 40   mm

Communication Protocol

ISO14443A/14443B/15693

Communication   Interface

USB Interface

Type-C (with headset function) *1

OTG   Interface

Support

Development   Support

Programming Language

Java

Development   API

iScan API   (Scanning Development Kits), Device API (Device Management/Configuration   Development Kits), Android Standard Interface

Development Tool

Eclipse/Android Studio

Accessories

Standard Accessories

USB cable*1, back strap *1, power adapter*1,   battery*1

Optional   Accessories

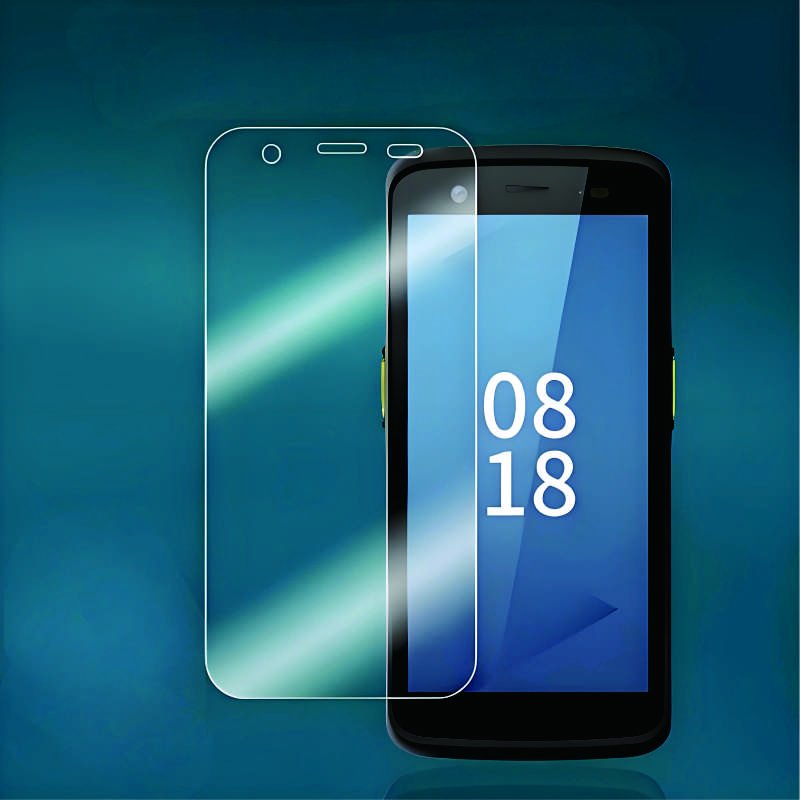

Power   adapter(fast charging), 2-in-1 charging cradle, 4- slot charging cradle,   multifunctional 5-slot cradle, hand strap, fanny pack, protective case,   protective film

Note

******

Due to irregular updates of the product line, the   content is subject to change without notice.
