Resolution

203 DPI

Printing method

Thermal Transfer /   Direct Thermal

Max.print speed

127 mm/s Max.

Max.print width

104 mm (4.09”)

Max.print length

1778 mm (70")

Media

Media type

Continuous, gap,   black mark, fan-fold and punched hole

Media width

25.4~118mm   (1.0”~4.6”)

Media thickness

0.06~0.254 mm   (2.36~10mil)

Media core diameter

25.4 ~ 76.2 mm (1   "~ 3 ")

Label length

10 ~ 1778   mm(0.39" ~ 70" )

Label roll capacity

127 mm (5“) OD   (External diameter)

Ribbon capacity

Max.300m

Ribbon width

110 mm

Performance   Features

Processor

32-bit CPU

Memory

8MB Flash   Memory/8MB SDRAM/Flash memory can be expanded to Max. 4 GB

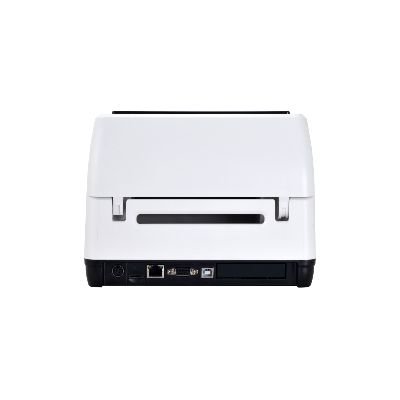

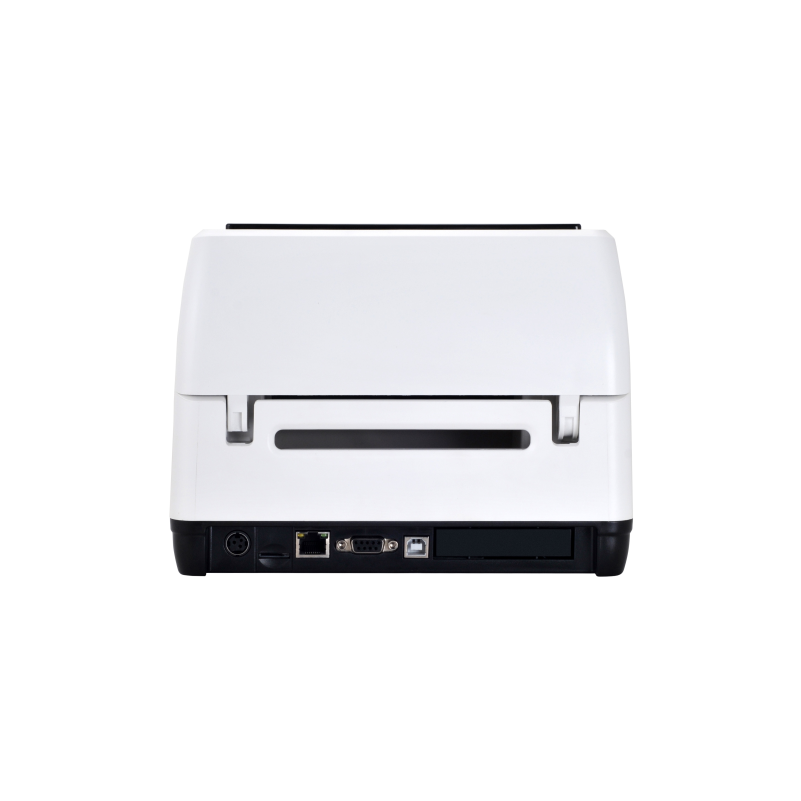

Interface

Standard:USB TF   card Optional: Lan/WIFI/Bluetooth/Serial

Sensors

Gap sensor,Cover   opening sensor,Black mark sensor,Ribbon sensor

Fonts/Graphics/Symbologies

Internal fonts

8 alpha-numeric   bitmap fonts, Windows fonts are downloadable from software.

1D barcode

Code 39, Code 93,   Code 128UCC, Code 128 ，subsets A, B, C,   Codabar, Interleaved 2

of 5, EAN-8,EAN-13,   EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI,

PLESSEY, POSTNET,   China POST, GS1 DataBar, Code 11

2D barcode

PDF-417, Maxicode,   DataMatrix, QR code, Aztec

Rotation

0°,90°,180°,270°

Emulaion

TSPL,EPL,ZPL,DPL

Physical Features

Dimension

282 mm (D) x 232 mm   (W) x 171 mm (H)

Weight

2.56kg

Power supply

Input

AC 110~240V,1.8A,   50-60Hz

Output

DC 24V, 2.5A, 60W

Options

Factory Options

WiFi   module,RS-232C(2400-115200 bps) communication interface, Lan,Serial

Dealer Options

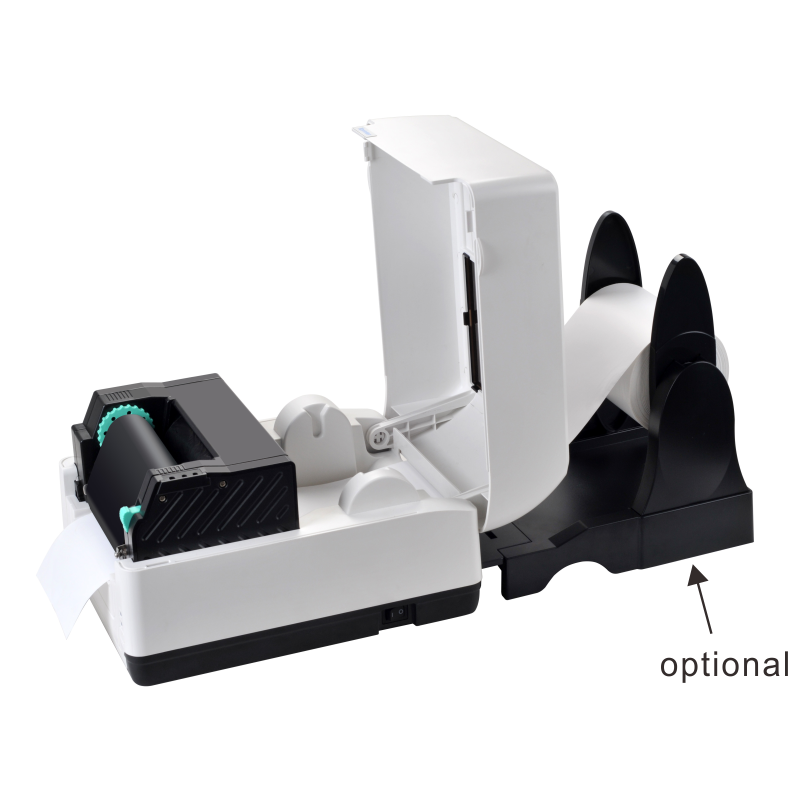

Eaper roll   holder,Extension board,Cutter,Peeling machine

Environmental   Conditions

Operation   environment

 5 ~ 40°C(41~104°F),Humidity: 25 ~ 85% no   condensing

Storage environment

 -40 ~ 60°C(-40~140°F),Humidity: 10 ~ 90% no   condensing
