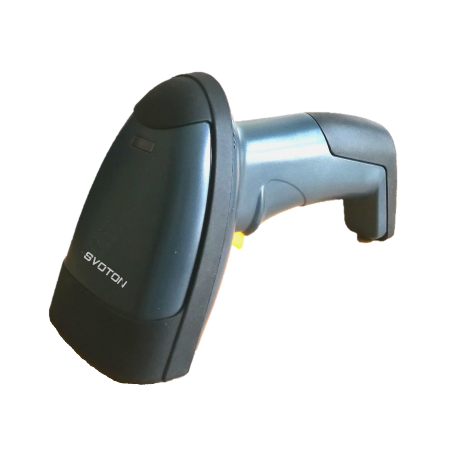

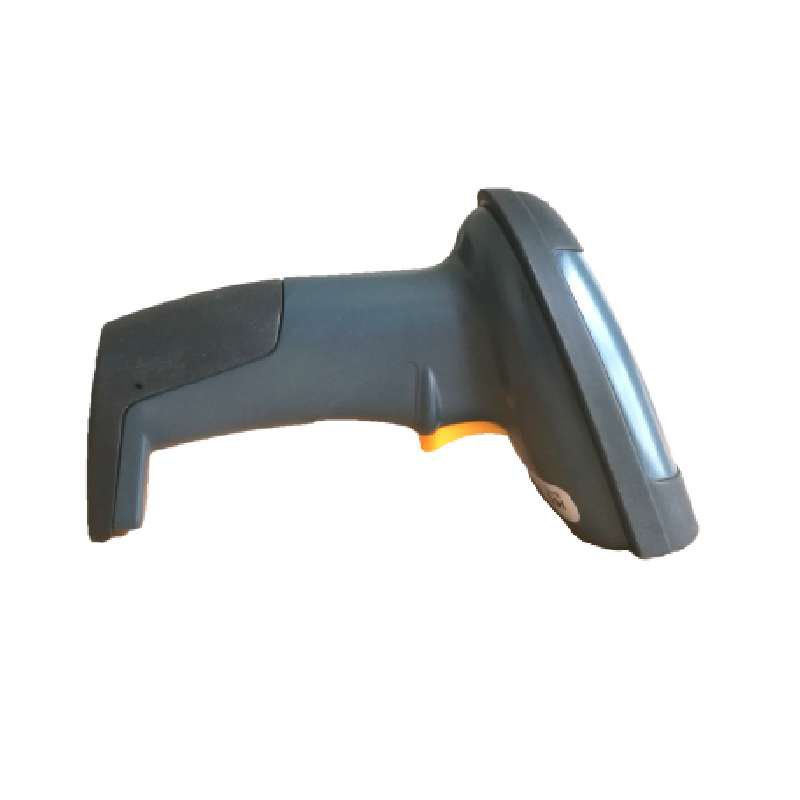

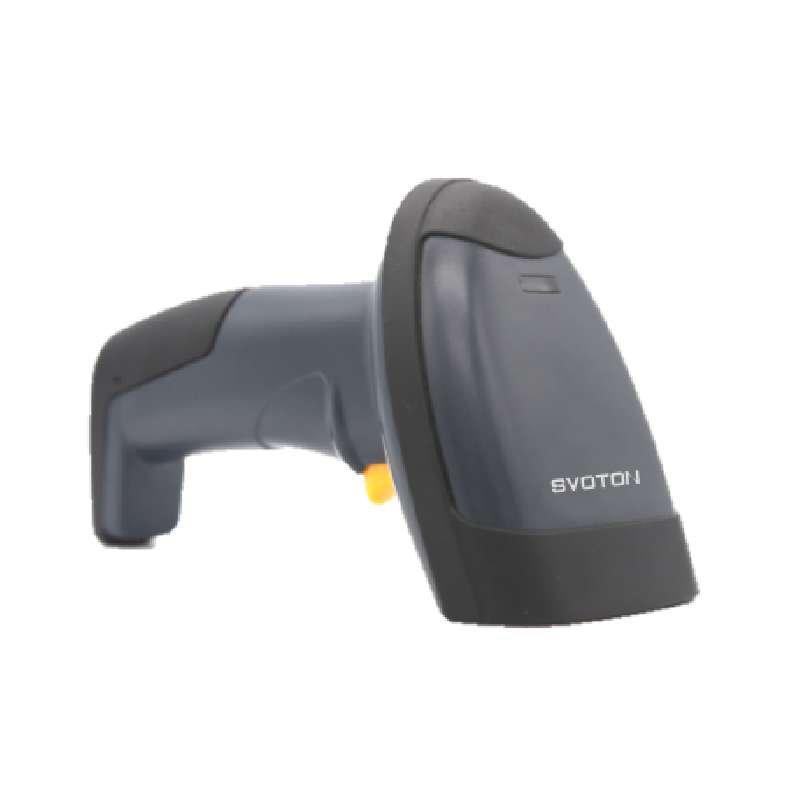

MG-1695 1D Laser Barcode Scanner

Product Features Specification Application Support & Downloads Contact Us

Product Features

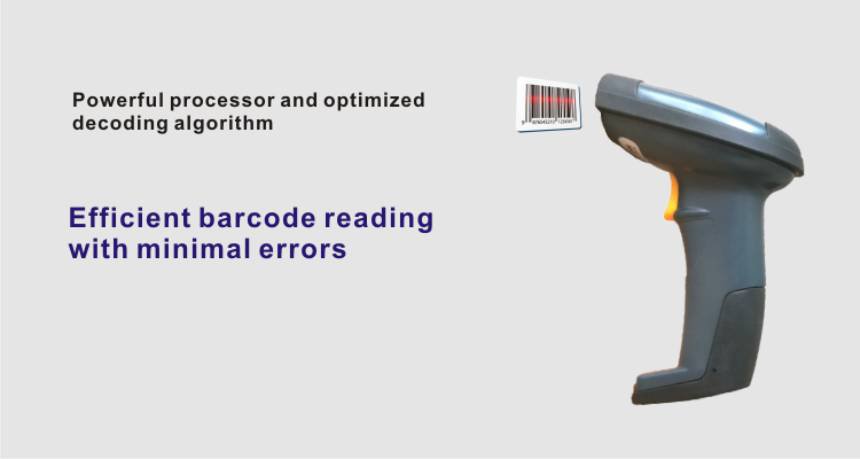

High-Speed & Accurate Decoding: Up to 200 scans/second, resolution ≥4mil, capable of reading blurred or high-density barcodes.

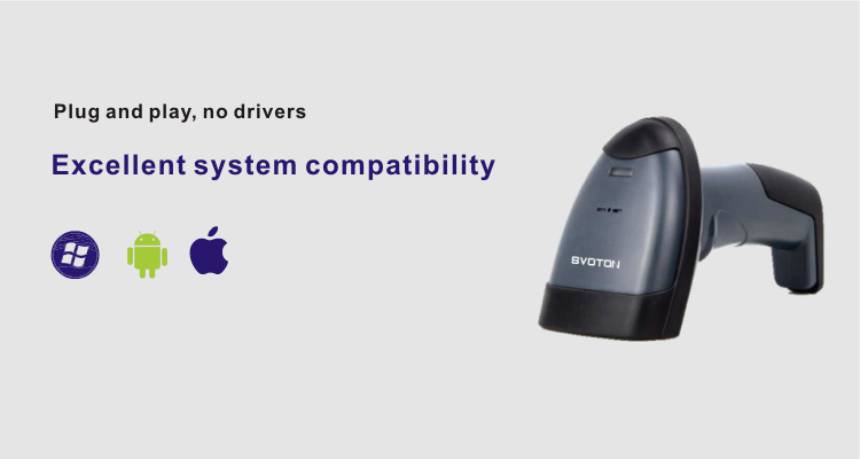

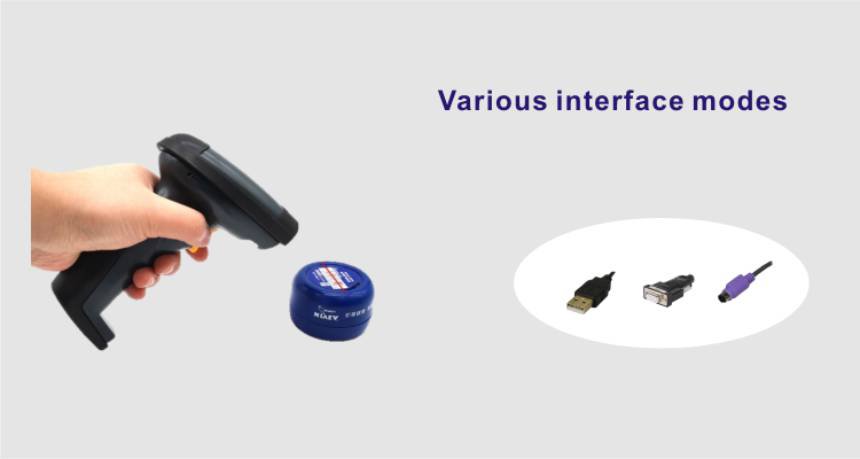

Multi-Interface Support: USB-HID, USB virtual serial port, UART, and keyboard (KB) interfaces for broad device compatibility.

Global Language Support: Built-in multilingual keyboard layouts and SDK/API for secondary development.

Industrial Durability: 1.2m drop resistance and ESD protection (9KV contact discharge / 15KV air discharge).

Specification

Mechanical
Weight	165g
Dimensions	170mm × 106mm × 73mm
Cable Length	1.8m
Electrical
Input Voltage	DC 3.5V–5.5V
Operating Current	50mA
Peak Current	100mA
Standby Current	25mA
Interfaces	USB-HID, USB Virtual COM, UART
Optical Performance
Light Source	Red LED (650nm±10%)
Field of View (FOV)	Vertical: 70° / Horizontal: 70°
Resolution	≥4mil
Print Contrast	≥30%
Decoding Capability
Supported Barcodes	EAN/JAN-8/13, UPC-A/E, Code 128/93/39, Interleaved 2/5, RSS variants, China Postcode, Code-Bar, MSI, etc.
Environmental
Operating Temperature	-10℃ ~ +50℃
Storage Temperature	-20℃ ~ +60℃
Humidity	5%–95% (non-condensing)
Reliability
Drop Resistance	Passes 1.2m drop test
ESD Protection	9KV contact discharge / 15KV air discharge

Optional Accessories

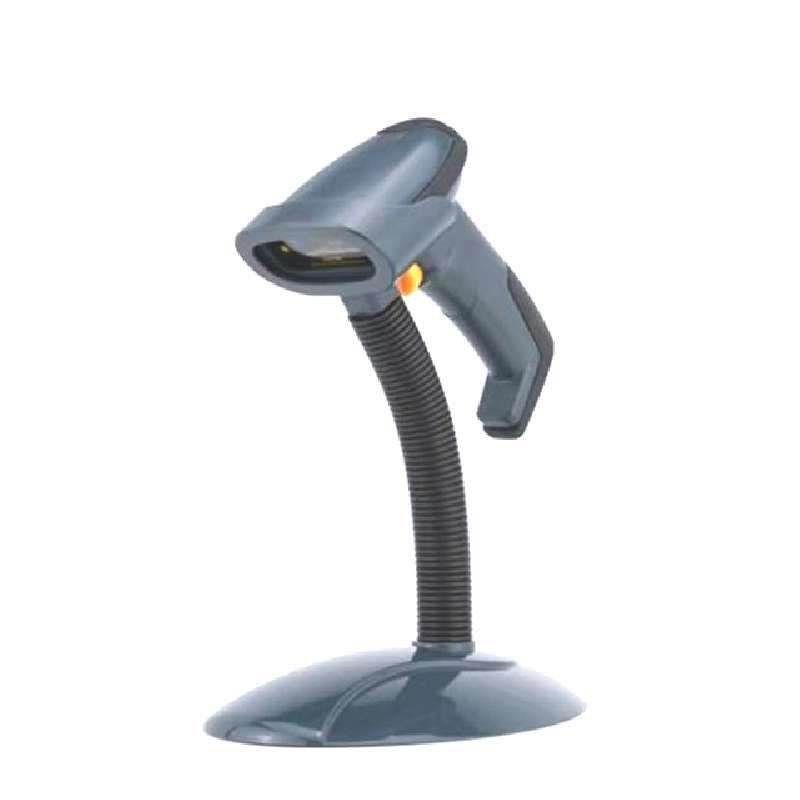

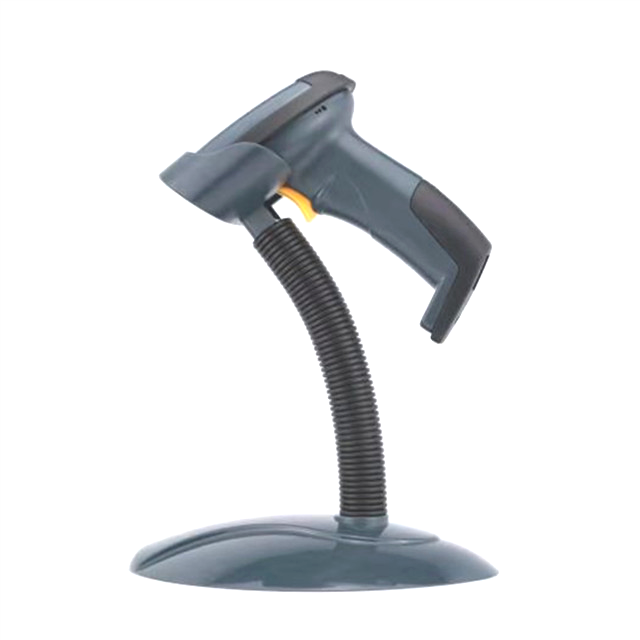

Holder

Application

The Barcode scanner is widely used, which can meet the application in retail, storage material management, finance, express delivery, medical and other fields.


Manufacture	Logistics	Warehousing	Retail

Support & Downloads

File Name	Download
• MG-1695 1D Laser Barcode Scanner Specification
