Mechanical |
|
|
Weight |
279.5g |
|
Dimensions (W×H×D) |
97 × 104 × 145 mm |
|
Cable Length |
2m |
|
Performance |
|
|
Scanning Speed |
Up to 3 m/s |
|
Resolution |
1280 × 800 pixels |
|
Field of View |
70° tilt/80° pitch/360° rotation |
|
Light Source |
Red LED |
|
Scanning Ranges |
|
|
Code 39 |
5 mils |
|
Code 39 |
13 mils |
|
PDF417 |
15 mils |
|
QR Code |
30 mils |
|
Electrical |
|
|
Input Voltage |
DC 5V ±5% |
|
Standby Current |
330 mA |
|
Operating Current |
450 mA |
|
Environmental |
|
|
Operating Temperature |
-20°C to +60°C (-4°F to 140°F) |
|
Storage Temperature |
-30°C to +70°C (-22°F to 158°F) |
|
Humidity Range |
5% to 95% RH (non-condensing) |
|
Vibration Resistance |
8G r.m.s (10-500Hz), 2hrs/axis |
|
Drop Resistance |
0.5m multiple surface drop test |
|
Protection Rating |
IP54 |
 |
 |
 |
 |

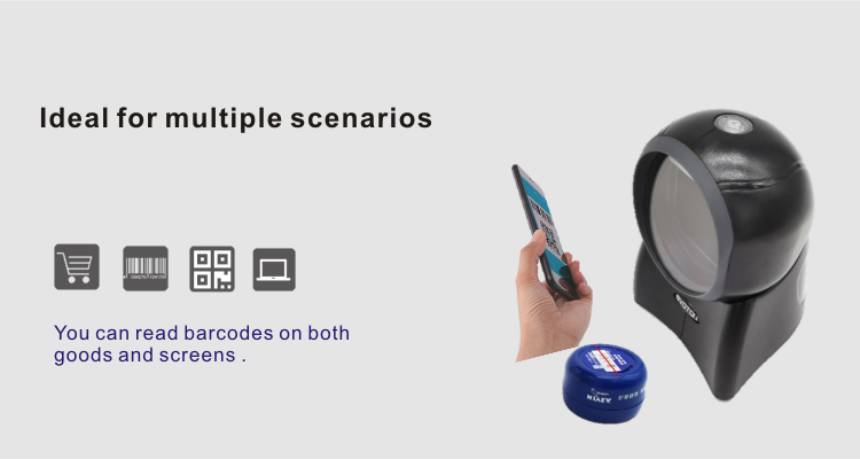

The Barcode scanner is widely used, which can meet the application in retail, storage material management, finance, express delivery, medical and other fields.
 |
 |
 |
 |

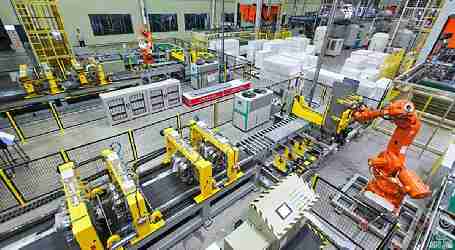

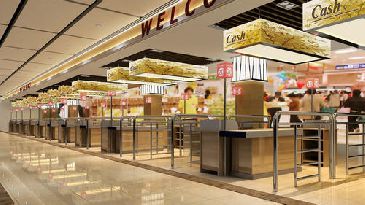

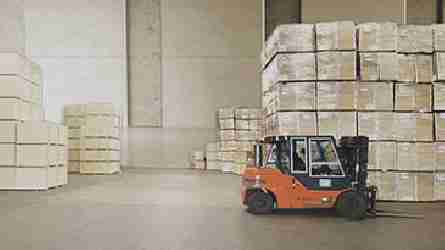

| Manufacture | Logistics | Warehousing | Retail |
| File Name | Download |
| • MG-4010 2D Desktop Barcode Scanner Specification |
 |
